AMD Ryzen AI Max APUs: Performance Insights and AI Acceleration in Mobile Chipsets

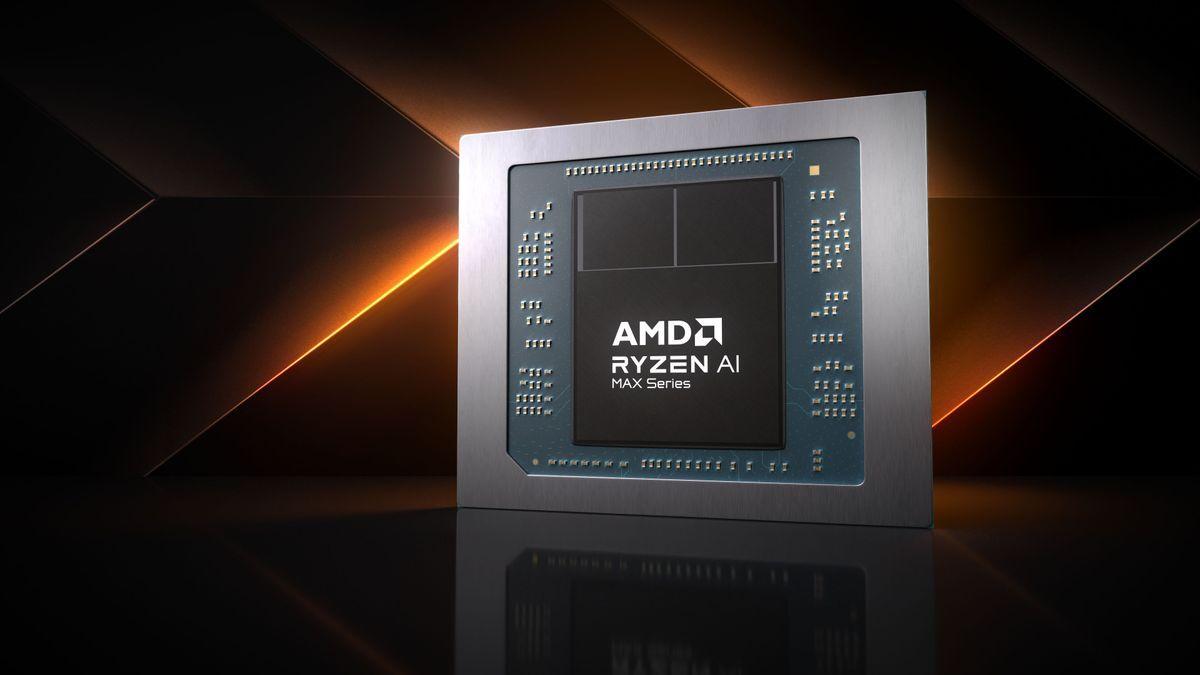

AMD Unveils Ryzen AI Max APU Series

AMD has introduced its new Ryzen AI Max "Strix Halo" APU series, targeting both consumer and workstation markets. The series includes three consumer variants and four workstation-class options, with the Ryzen AI Max+ 395 being the flagship model 1

1

.

Performance Insights from Geekbench Scores

Recent Geekbench 6 benchmarks have revealed the performance capabilities of the entry-level Ryzen AI Max PRO 385 APU. Tested in an HP ZBook Ultra 14 G1a, the chipset scored 2,489 in single-core and 14,136 in multi-core tests 1

1

. These scores are lower than expected, especially when compared to the higher-end Ryzen AI Max PRO 390, which scored 2,759 and 15,779 in single-core and multi-core tests, respectively 2

2

.

Architectural Overview of Ryzen AI Max PRO 385

The Ryzen AI Max PRO 385 is built on AMD's Zen 5 architecture, featuring:

1. Eight CPU cores with a base frequency of 3.60 GHz and boost up to 5.00 GHz
2. Radeon 8050S integrated GPU with 32 compute units
3. Neural Processing Unit (NPU) rated at 50 TOPS for AI workloads 2

   2

This design aims to balance general-purpose CPU performance, GPU-accelerated compute, and specialized AI acceleration within a mobile power envelope.

Performance Gap and Positioning

The performance gap between the 385 and higher-end models can be attributed to several factors:

1. Core count difference (8 cores vs. 16 cores in the 395 model)
2. Lower max frequency in the 385 model
3. Potential differences in RAM configurations 1

   1

Despite the lower benchmark scores, the Ryzen AI Max 385 and its professional variant remain interesting options due to their larger Radeon 8060S integrated graphics tile 1

1

.

Market Positioning and Pricing

AMD positions the Ryzen AI Max 300 series directly above the Ryzen AI 300 series. The entry-level Ryzen AI Max 385's Geekbench scores are just above the top-end of the Ryzen AI 300 series 1

1

.

Pricing for Ryzen AI Max systems:

• HP ZBook Ultra with Ryzen AI Max 385: Starting at $2,599
• Asus ROG Flow Z13 with Ryzen AI Max 390: $2,099 1

  1

The higher price point for Ryzen AI Max chipsets is justified by the more powerful Radeon 8060S iGPU and enhanced AI capabilities.

Implications for AI Acceleration in Mobile Computing

The Ryzen AI Max series, including the 385 model, represents a significant step in integrating AI acceleration capabilities into mobile chipsets. The 50 TOPS NPU in the 385 model enables faster inference for AI workloads, including neural network model execution, computer vision tasks, and machine learning preprocessing 2

2

.

This advancement in mobile AI acceleration could have far-reaching implications for on-device AI processing, potentially improving performance and reducing reliance on cloud-based AI services for certain applications.
