iRonCub3: World's First Flying Humanoid Robot Takes Off

Breakthrough in Humanoid Robotics

Italian researchers have achieved a significant milestone in robotics with the successful demonstration of iRonCub3, the world's first flying humanoid robot. Developed by the Artificial and Mechanical Intelligence group at the Italian Institute of Technology (IIT), iRonCub3 combines jet propulsion with advanced AI-powered control systems to achieve stable vertical liftoff and hover 1

1

2

2

.

Technical Specifications and Design

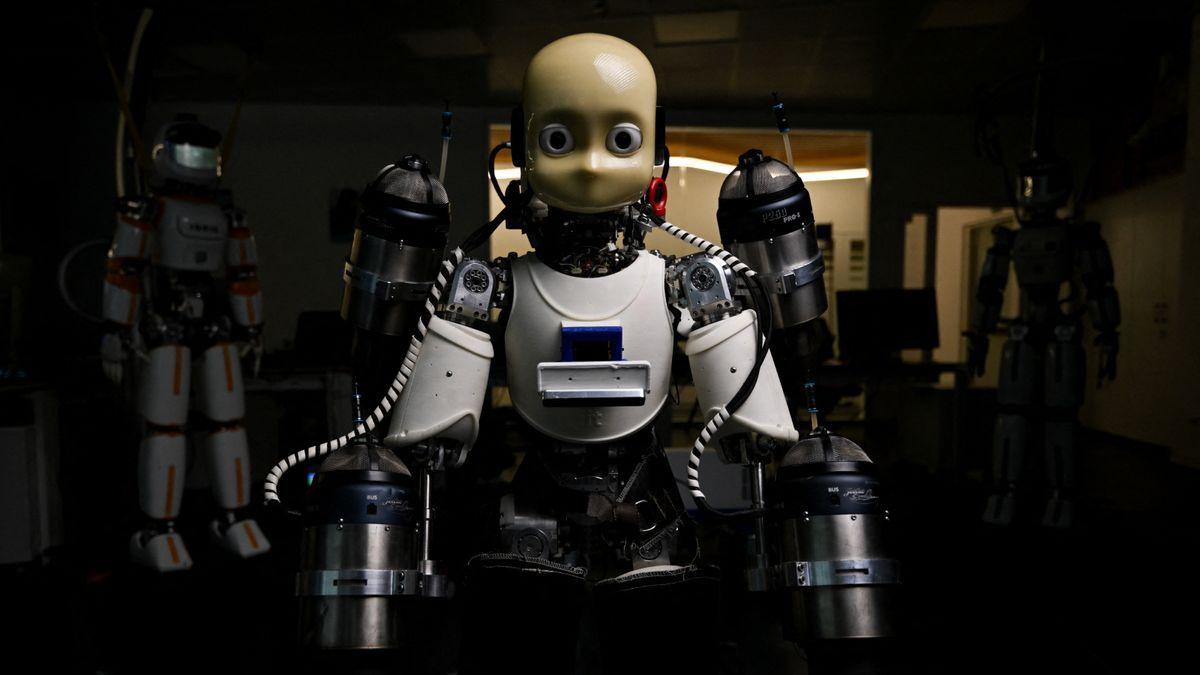

iRonCub3 is a 70-kilogram (154 lb) robot equipped with four microjet turbines - two built into its arms and two in a jetpack mounted on its back 1

1

3

3

. The robot features:

• A newly developed titanium spine to withstand flight forces
• Heat-resistant covers to protect against exhaust temperatures up to 800°C (1,472°F)
• Advanced sensors, including an inertial measurement unit, force-torque sensors, and a RealSense depth camera
• A total thrust capacity of 1,000 N (around 225 lbf)

The robot's design is based on the child-like iCub platform, measuring 3 feet (1 meter) tall, but with significant modifications to enable flight capabilities 1

1

.

AI and Control Systems

A key innovation in iRonCub3 is its advanced control system, which integrates:

• A Linear Parameter Varying Model Predictive Control (MPC) for coordinating joint positions and jet throttle
• Neural network-based real-time aerodynamic force estimation
• AI-based models trained on simulated and experimental data 2

  2

  4

  4

These systems allow the robot to maintain stability during takeoff and flight, even in gusty wind conditions and while changing its body configuration 3

3

.

Testing and Future Development

The iRonCub3 prototype has successfully achieved stable liftoff and hover in controlled indoor environments, reaching heights of about 50 centimeters (20 inches) 1

1

4

4

. The team has conducted extensive computer simulations and wind tunnel tests to validate their designs 2

2

.

Future plans include:

• Larger-scale testing at Genoa Airport
• Improving the flight controller to handle external disturbances like wind
• Reintegrating the robot's forearms and hands for manipulation capabilities 1

  1

  2

  2

Potential Applications

Researchers envision several potential applications for flying humanoid robots like iRonCub3:

1. Search and rescue missions in disaster areas
2. Inspections of dangerous or hard-to-reach structures
3. Operations in hazardous environments unsuitable for humans
4. Aerial surveys combined with ground-based tasks 1

   1

   3

   3

   4

   4

Challenges and Innovations

Developing a flying humanoid robot presented unique challenges, including:

• Managing complex aerodynamics due to the robot's human-like shape and movable limbs
• Integrating jet propulsion with traditional robotic joint actuators
• Ensuring heat resistance and structural integrity under extreme conditions 2

  2

  3

  3

The success of iRonCub3 represents a significant advancement in robotics, combining aerial mobility with human-like ground capabilities. As development continues, this technology could pave the way for more versatile and adaptable robots capable of operating in a wide range of environments and scenarios.
